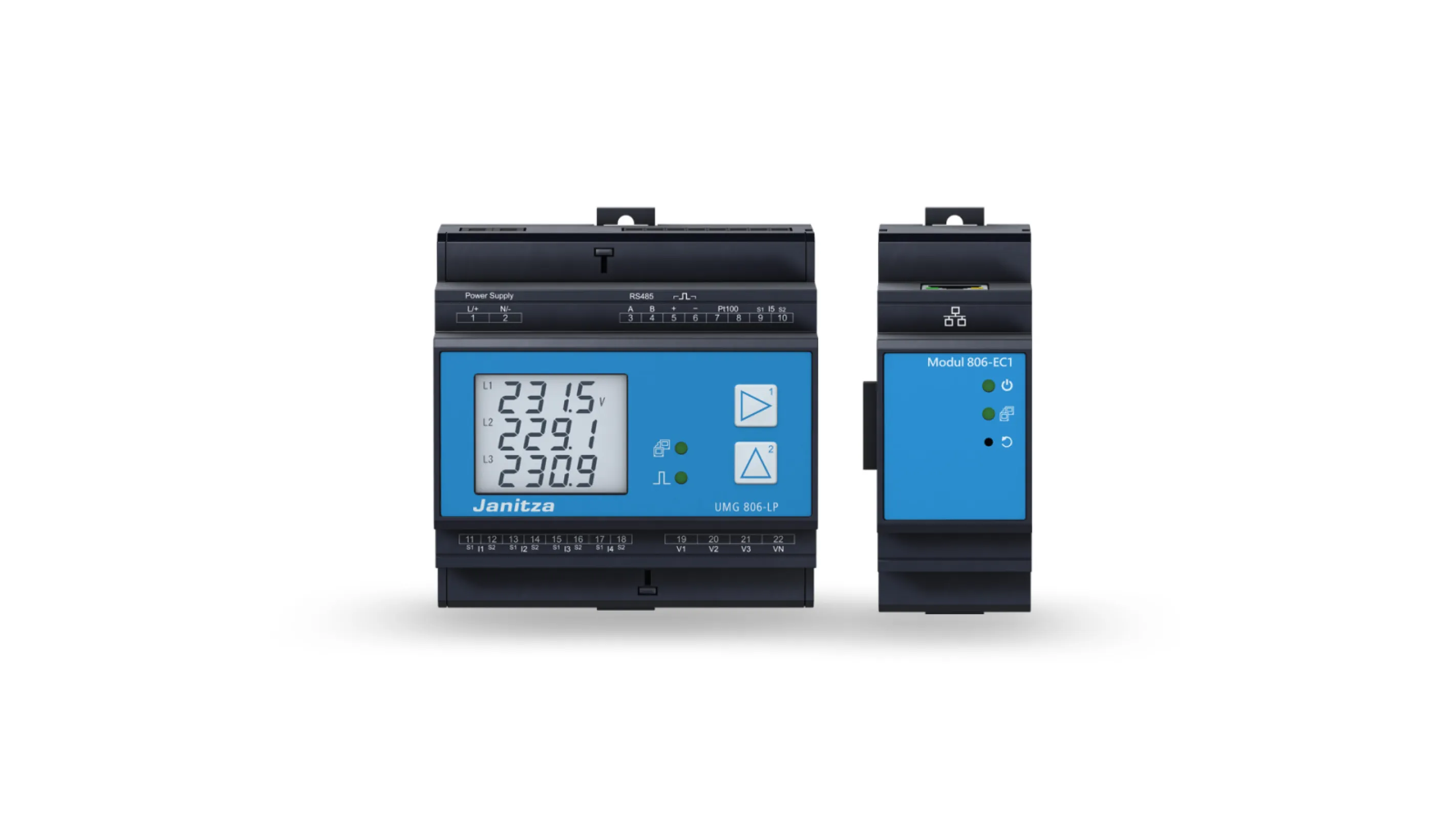

Fine-grained energy monitoring is the key to precisely monitoring and controlling energy flows at all levels. This is the only way to increase efficiency and reduce costs. The UMG 806 energy measurement device offers you optimum flexibility and adaptability thanks to its two available variants: the UMG 806-LP and the UMG 806.

The UMG 806-LP offers measuring inputs for the connection of low-power converters. These converters are characterized by a very low secondary-side voltage output. Due to the low signal on the converter cable, the secondary side of the converter does not have to be short-circuited in open operation. This increases safety during installation and simplifies the installation process considerably. In addition, low-power converters offer price advantages over many conventional converter models in terms of consumption, making them a cost-effective alternative.

The UMG 806 is ideal for situations where conventional converters are already installed in the system. It can be seamlessly integrated into existing measurement infrastructures.

Apart from the measuring inputs, both devices are identical in their functions and specifications.
