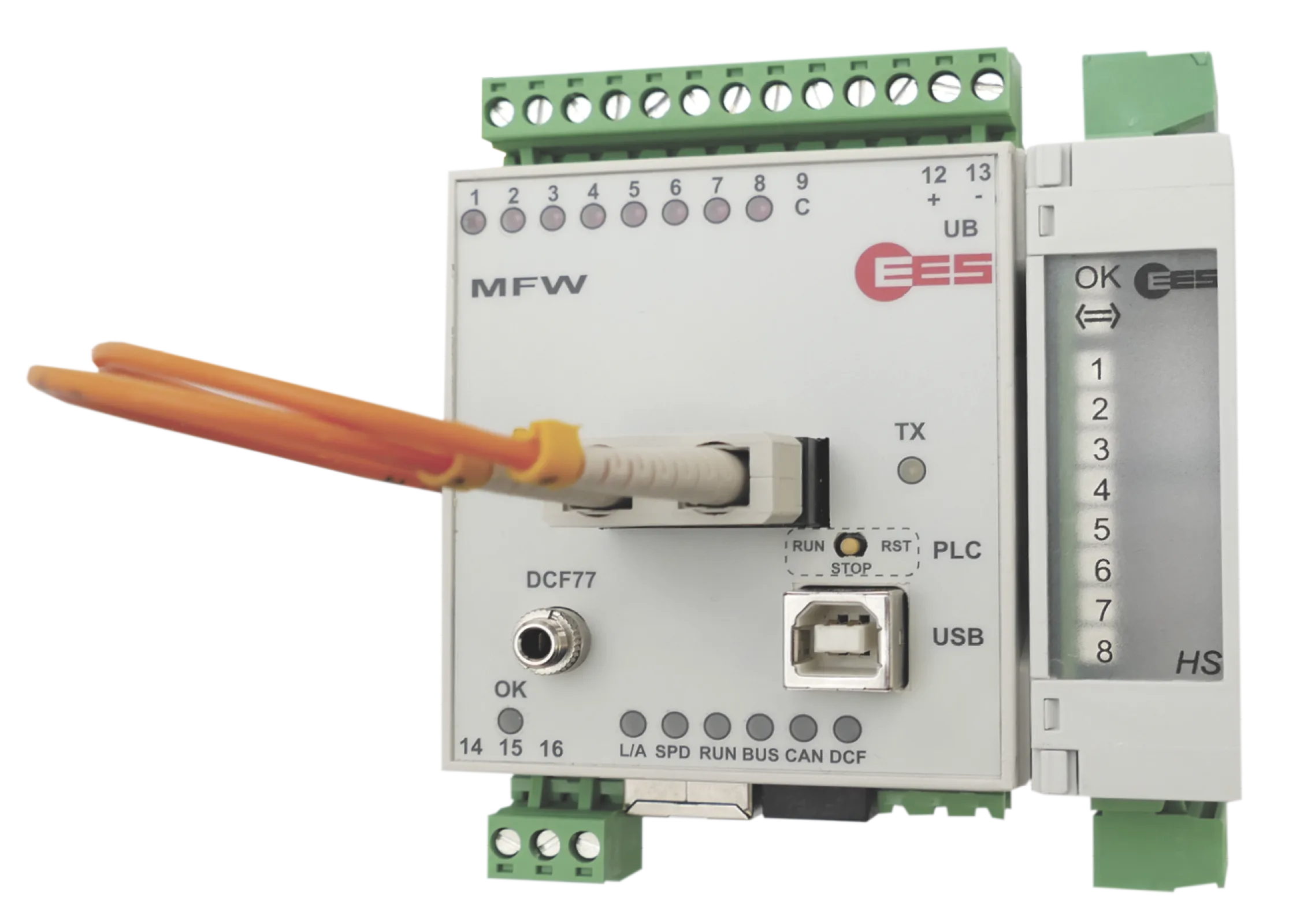

Ultra fast optical fiber telecontrol system MFW
Elektra Elektronik GmbH & Co. Störcontroller KG
Point-to-point data transmission by optical fibre
This variant of the MFW modular telecontrol system was developed for data transmission on "singlemode" or "multimode" optical fibres. The telecontrol system always consists of 2 stations which transmit the respective data in point-to-point configuration. The use of optical fibres as transmission medium guarantees a robust, interference-free transmission over long distances, even in harsh, interference-contaminated environments.
In some cases, it is not the entire expandability of the system that is required, but a variant optimised for fast transmission. For such tasks (e.g., intertripping of railway substations), the MFW systems for the leased line and optical fibre transmission media have been optimised for the high transmission speed of a point-to-point connection. The parameterization of the system is carried out completely by DIP switches for easier handling.
The benefits at one glance:
Cycle time about or less than 10ms
Basic modules with 4 in- and outputs
Modular configuration for up to 32 stations or I/O modules
Long distance up to 60 km dependent on optical fiber type
Simple parameterization without software
Ultra fast optical fiber telecontrol system MFW
